Product Info LUMiSpoc

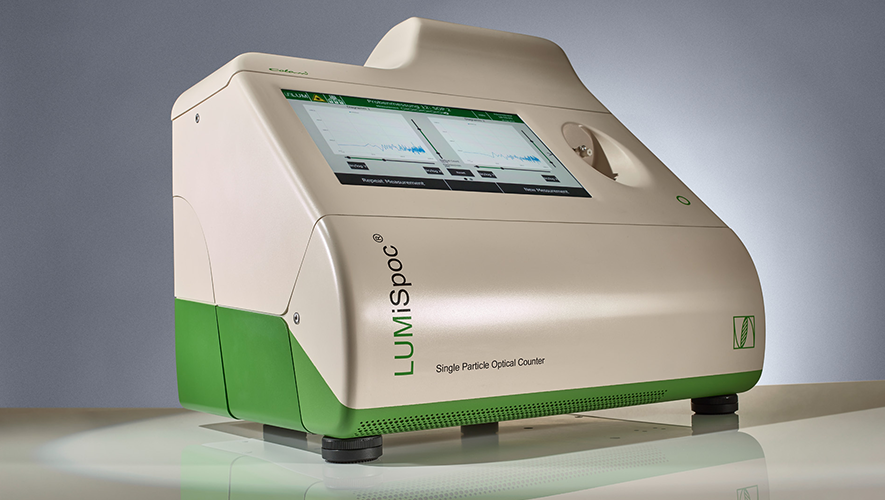

The LUMiSpoc® is a highly advanced single particle light-scattering flow cytometer that measures particle size distribution and particle concentration of nano- and microparticles in suspensions and emulsions with an unparalleled resolution and dynamic range.

Particles are separated by hydrodynamic focusing in the measuring cell and pass the focus of a violet laser beam one after another. By powerful optics and electronics , the forward and sideward scattered light from each particle is detected and processed simultaneously.

The technology used is called SPLS (single particle light-scattering, SPLS-Technology®). It records light that is scattered into different directions by single nano- and micro particles while passing a focused laser beam of non-spherical cross-section. It enables you to get a deep insight into complex nano- and submicro-particulate systems, which helps you to design tailored particles and dispersions.

LUMiSpoc® - the new standard in nano particle counting.


Application Areas
  • Number concentration determinations
  • Number-based size distributions of micro & nano particles
  • Classification of nanomaterials (2011/696/EU)
  • Agglomeration & flocculation kinetics
  • Coarse grain fractions
  • Filter media & membrane testing
  • Particle purity of liquids & solutions
  • Homogenization
  • Applicable for materials such as: biological cells & viruses, carbon black, CMP slurries, droplets, filler, functionalized particles,pigments, polymers, reference particles...
  • Simultaneous detection of foreward and sideward light scatter of single particles (SPLS-Technology®)
  • Particle separation by hydrodynamic focussing of sample flow
  • Violet diode laser with special focus-geometry (intensity adjustment factor 3)
  • High resolution due to two gainable photomultipliers
  • Fast processing by a linear amplifier, digitalisation & real-time impulse analysis and classification
  • Flexible sample concentration by adjusting sheath & sample flow
  • Automatic fluid control

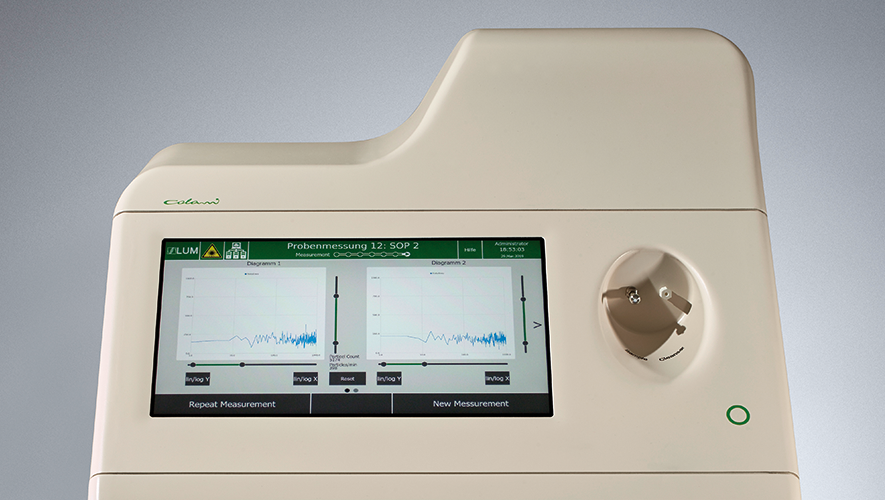

  • Touch display with embedded PC & server/browser based software
  • One-point calibration by reference particles (based on Mie scattering theory)
